– Natural anodized
– Dimensions tolerance is ± 1mm
– Made of aluminum profile 6063 T5
– Size can be customized
– Use for air exhaust in the outside wall
– Screen mesh grid size 13x13mm, 6x6mm and 2x2mm are available
Ultimate Protection with Optimal Airflow

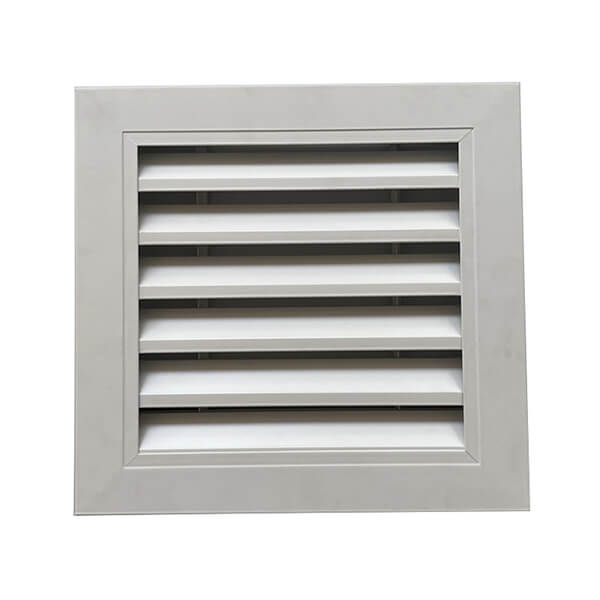

Our Weatherproof Louvre Grilles are meticulously engineered to safeguard air intake and exhaust openings on your building’s exterior walls. With a unique “J” style blade design, they offer maximum resistance to rain and adverse weather conditions, all while ensuring minimal disruption to airflow. Each blade is securely fastened to the frame using self-tapping screws, and for added convenience, vermin mesh is included as a standard feature.
Customizable Lengths

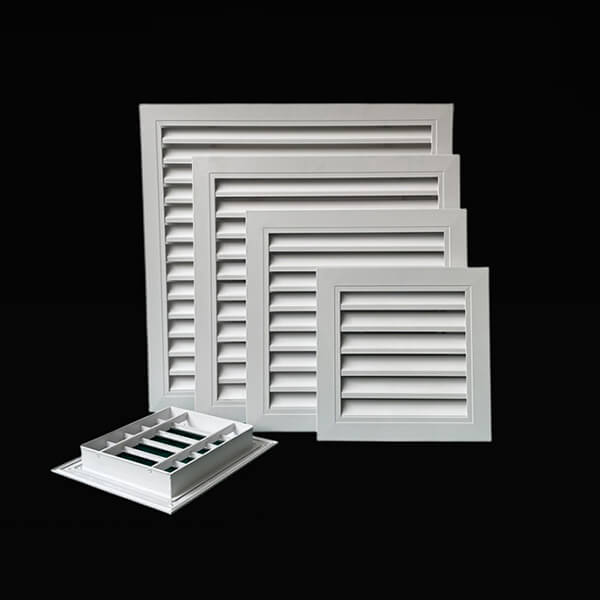

We provide flexibility in sizing. Our Weatherproof Louvre Grilles can be manufactured as single pieces up to 3 meters in length, or multiple pieces can be assembled for openings exceeding 3 meters.
Durable Construction

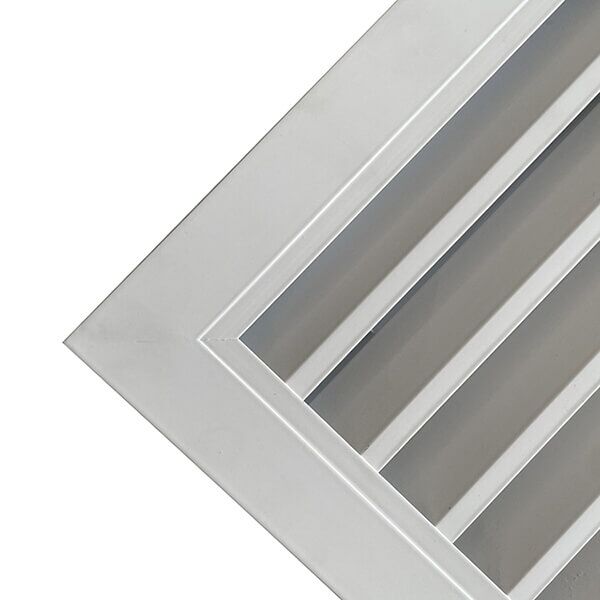

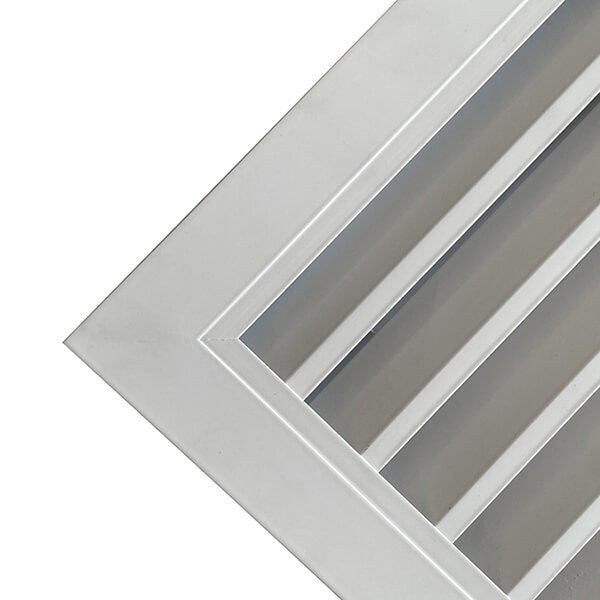

Constructed from extruded, hardened aluminum, our louvers guarantee security and longevity. The flange of the outer frame comes in two options, 27mm or 50mm, depending on your specific requirements. Additional configurations are available upon request to cater to the demands of architects.
Variety of Finishes
Our standard grilles come in a natural anodized finish, but we offer customization options. Choose from powder-coated finishes in accordance with your specifications, ensuring your grille seamlessly blends with your building’s aesthetic.
Description and Structure

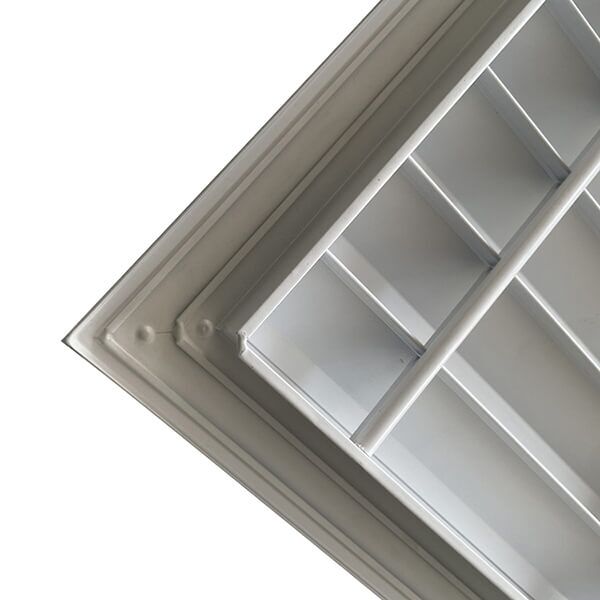

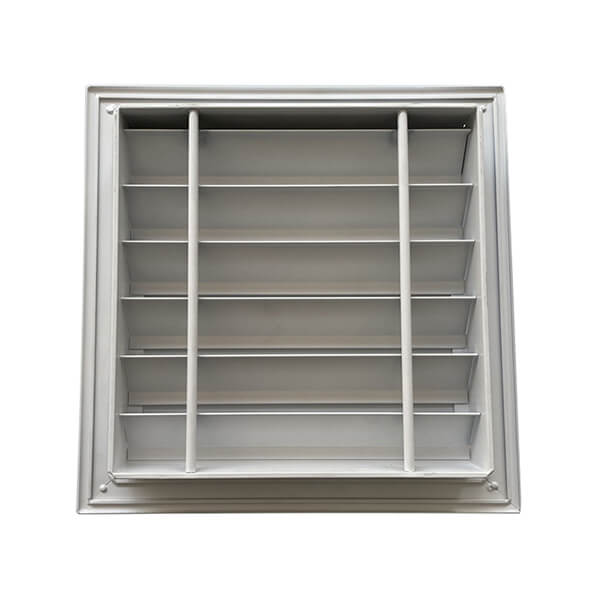

Our Fresh Air Louver consists of a frame and a horizontal blade assembly. It is crafted from high-quality extruded aluminum, ensuring resistance to corrosion and structural rigidity. The blades are angled at 45° with 30mm spacing, securely attached to the inner frame with rivets and support pipes. This design not only provides weatherproofing but also inclines the blades downward to protect against rainwater. The structure offers around 45% effective pressure area, ensuring reliable performance.
Surface Finish Options
Material Thickness Options
Select the material thickness that suits your specific needs: 0.8mm, 1.0mm, or 1.2mm.
Perfect for Ventilation and Air Conditioning Systems
Our Weatherproof Louvre Grilles are designed to excel in both residential and commercial reverse cycle air conditioning supply air applications. They deliver reliable performance with a focus on protection and efficiency, ensuring your air intake and exhaust openings are well-protected against the elements.
HVAC Weatherproof Louvre Grilles:

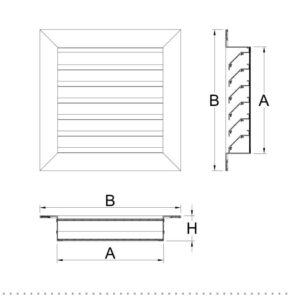

| Code | A-A(mm) | B-B(mm) | H(mm) |
| WPL-A 150150 | 145*145 | 207*207 | 45 |
| WPL-A 200200 | 195*195 | 257*257 | 45 |
| WPL-A 250250 | 245*245 | 307*307 | 45 |
| WPL-A 300300 | 295*295 | 357*357 | 45 |
| WPL-A 400400 | 395*395 | 457*457 | 45 |
| WPL-A 600600 | 595*595 | 657*657 | 45 |
