China Manufacturer – Swirl Diffuser Fixed Blades

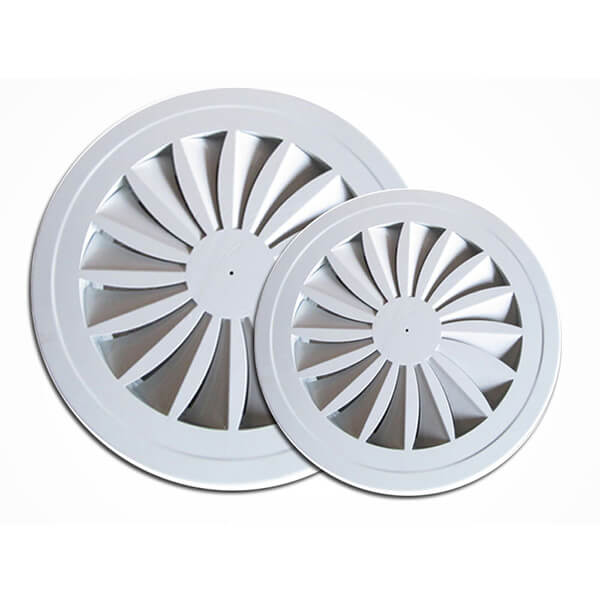

The Swirl Diffuser Fixed Blades, featuring a round shape, is the perfect marriage of functionality and aesthetics. Crafted from galvanized steel and adorned with a pristine white powder-coated finish, this diffuser seamlessly integrates into any interior space, offering efficient air distribution while adding an elegant touch. Built with galvanized steel, it boasts longevity and resistance to corrosion, ensuring suitability for a variety of settings. The unique swirling airflow pattern it generates enhances air mixing, reducing temperature variations and improving indoor air quality. Designed for easy installation and compatibility with diverse ductwork configurations, this round swirl diffuser presents a versatile solution for optimizing air circulation in commercial, residential, and industrial environments.

Key Features:

• Supports horizontal air supply and exhaust.
• Flush ceiling installation for a seamless appearance.
• Effective reduction of supply air jet velocity, thanks to a high mixing effect.

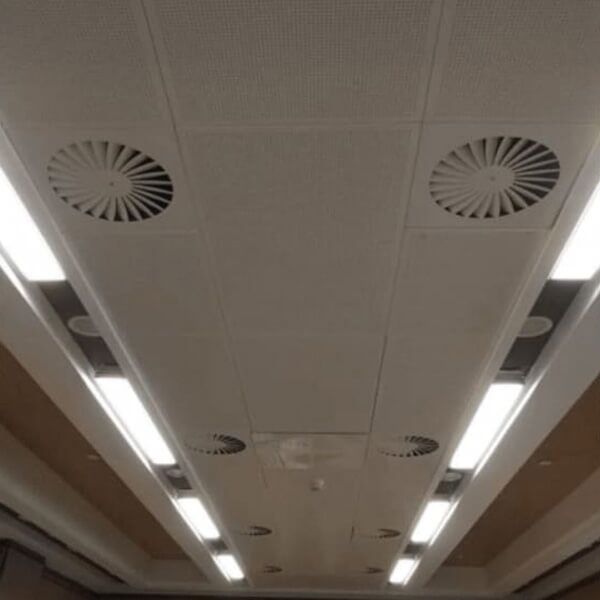

• Suited for installation in modular 600×600 mm suspended ceilings.
• Optional radial damper for precise air volume control.
• Optional plenum box for airflow balancing, equalization, and duct noise attenuation.

Construction:

• Frame crafted from sturdy 1.0mm galvanized steel.
• Plenum box constructed from durable 0.5-0.6mm galvanized steel.

Surface Finish:

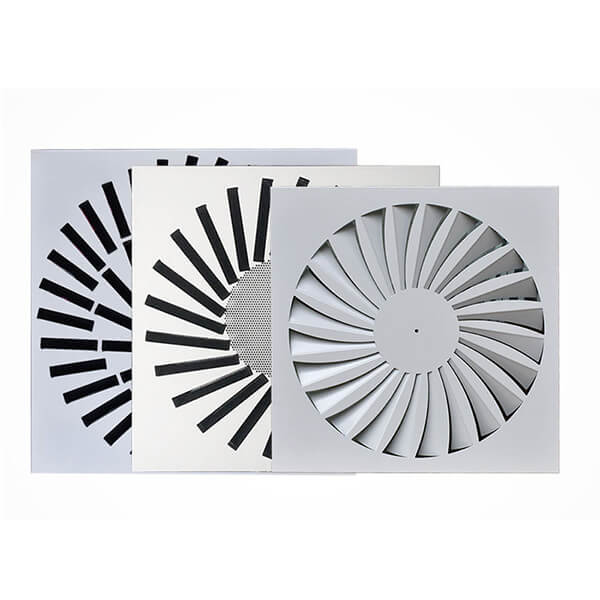

• Available in various powder-coated color finishes to match your decor, adhering to RAL color standards.
• Standard color options include RAL9016 and RAL9010.

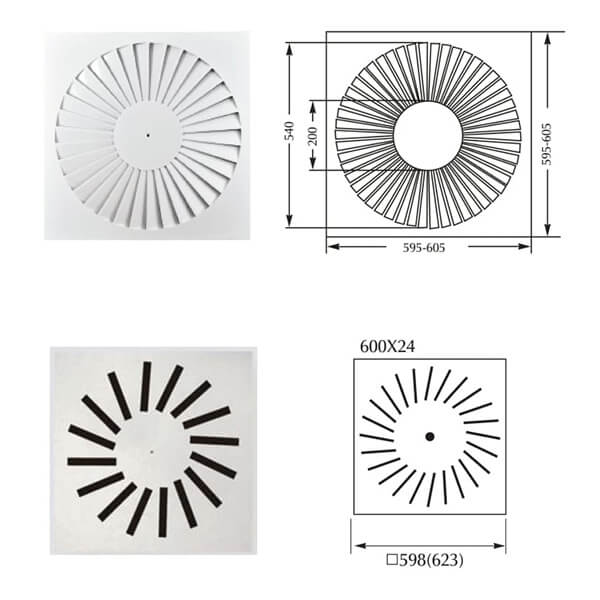

Size Options:

• Panel size: 595x595mm.
• Diameter (D) options: 150mm, 200mm, 250mm, 300mm, 350mm, 400mm.
• Height (H) options: 100mm, 200mm.

Accessories:

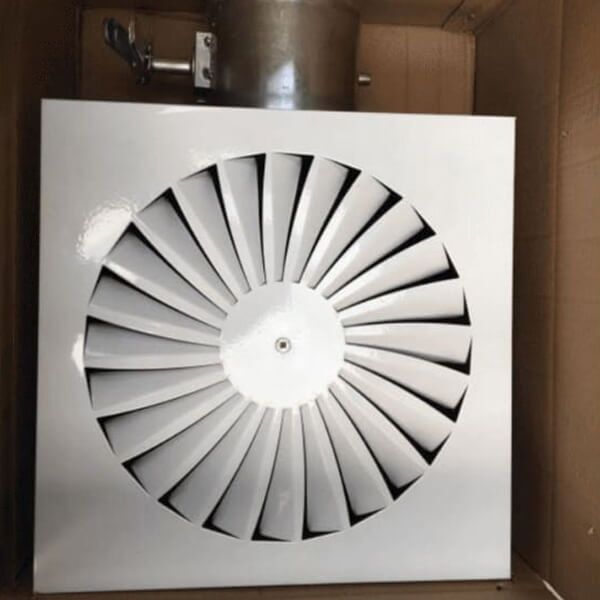

• Optional plenum box (PB) for enhanced functionality.
• Optional radial damper (OBD-R) for precise air volume adjustment.
