– Powder-coated white

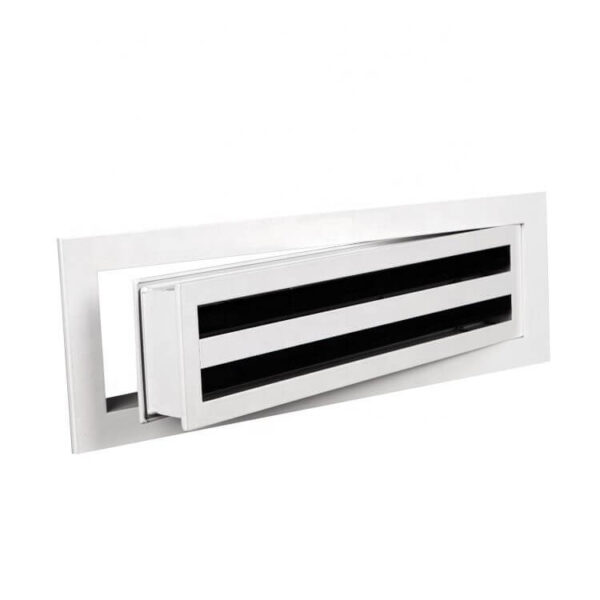

– The core is removable
– Made of aluminum profile 6063 T5
– Size can be customized
– Two types of slot sizes are available
– The number of slots can be customized
– The blades are anodized black
– Dimensions tolerance is ± 1mm
1. Durable Construction: Our Linear Slot Diffusers feature high-quality extruded aluminum frames and blades, offering exceptional corrosion resistance and structural integrity.

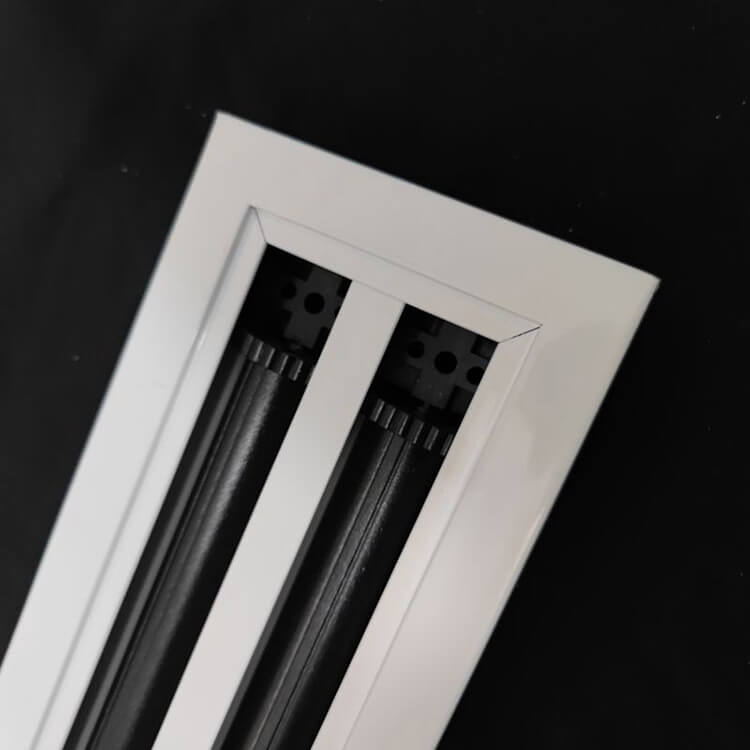

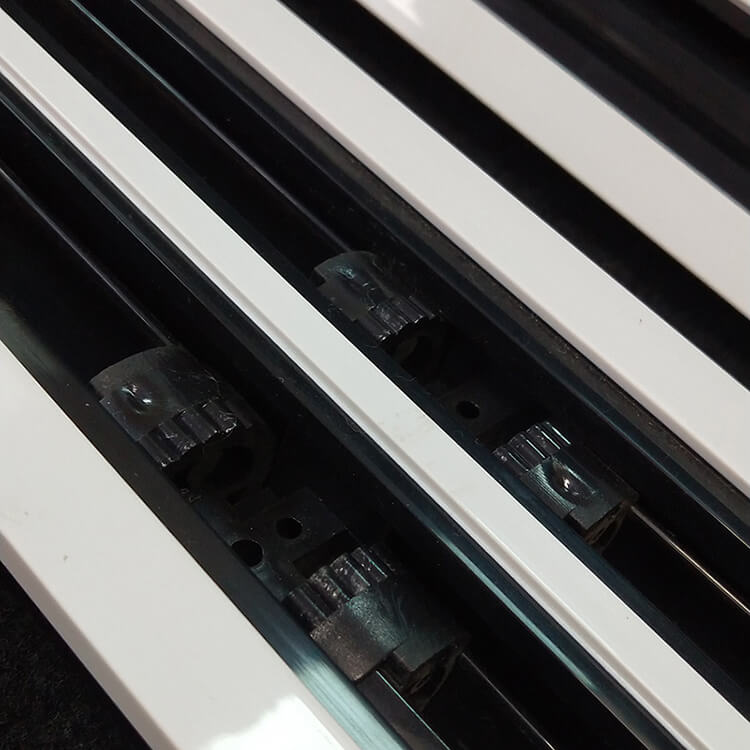

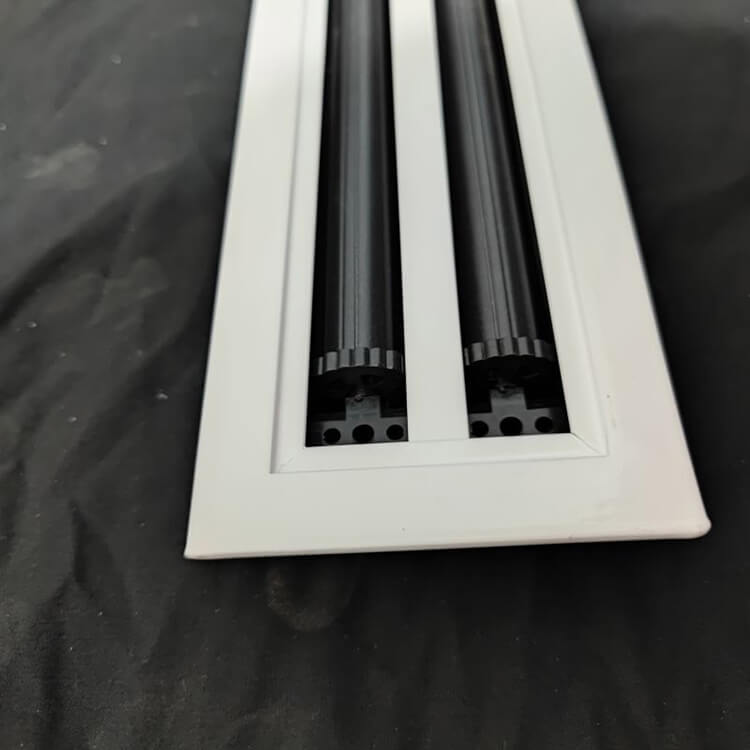

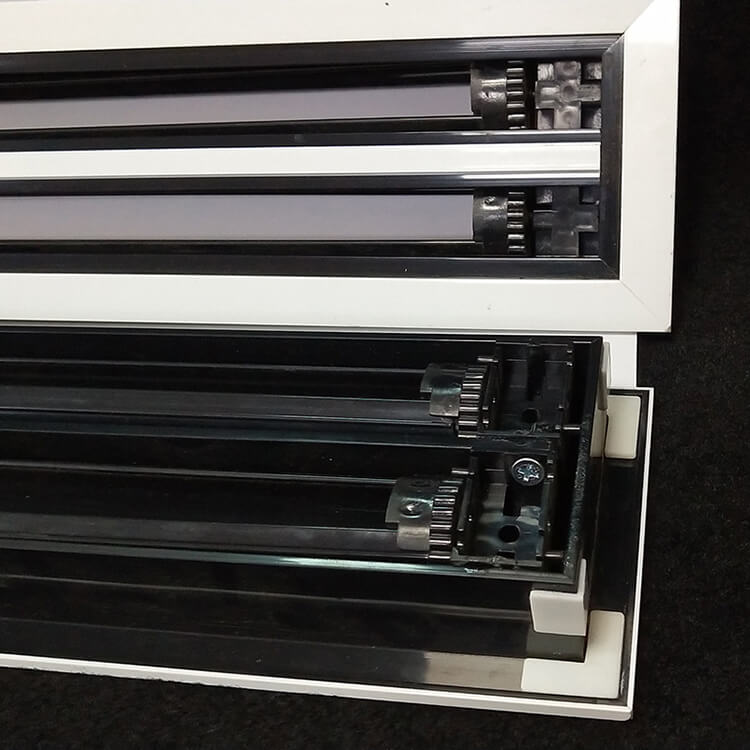

2. Customizable Air Flow: You have the flexibility to adjust air distribution both vertically and horizontally using deflection blades, all without affecting the air flow rate. The sleek black blades are fully adjustable right from the face opening.
3. Seamless Length Options: Achieve your desired length without the need for end-to-end connectors. Simply combine single pieces for a continuous, sleek look.
4. Tailored Slot Count: You can select the number of slots, ensuring the perfect fit for your HVAC system.
5. Size Variability: Our Linear Slot Diffusers are available in any size you require. The size is determined by adding 35mm to the neck size to cover the entire face opening.

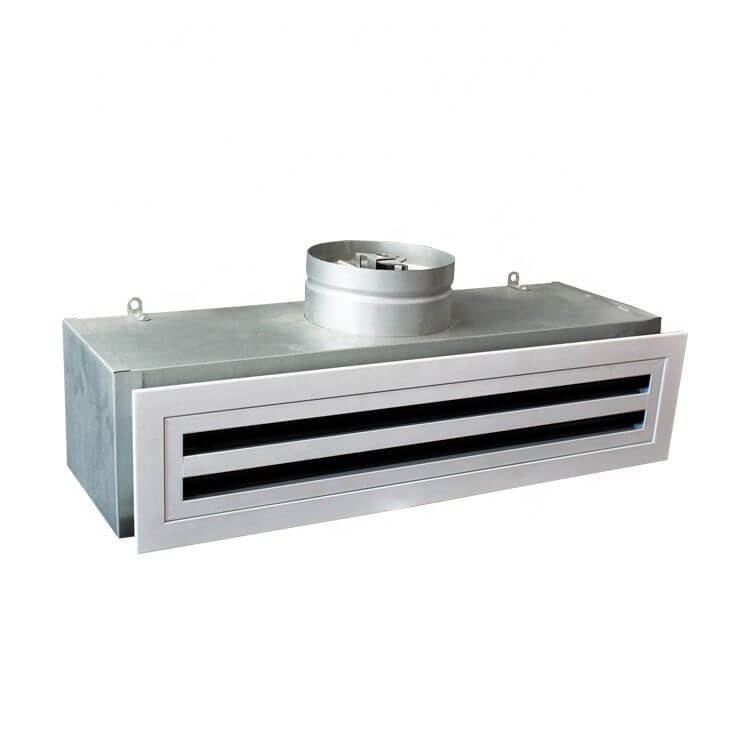

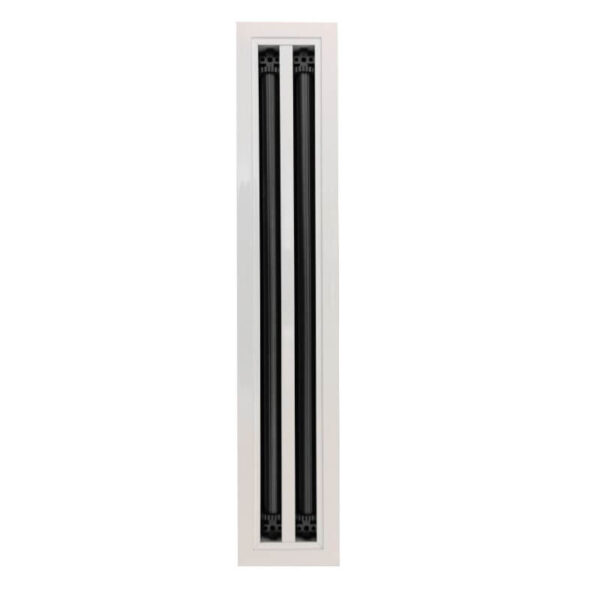

Linear Slot Diffuser:
| Code | A-A (LSD-S) |
B-B (LSD-S) |
A-A (LSD-L) |
B-B (LSD-L) |
Slot | H |
| LSDR 1000/1 | 995*57 | 1044*106 | 995*62 | 1044*111 | 1 | 50 |
| LSDR 1000/2 | 995*96 | 1044*145 | 995*106 | 1044*155 | 2 | 50 |
| LSDR 1000/3 | 995*135 | 1044*184 | 995*150 | 1044*199 | 3 | 50 |
| LSDR 1000/4 | 995*174 | 1044*223 | 995*194 | 1044*243 | 4 | 50 |
| LSDR 1000/5 | 995*213 | 1044*262 | 995*238 | 1044*287 | 5 | 50 |
