HVAC Double Deflection Grille Diffuser – Diffusers & Grilles Manufacturer

Customizable Air Distribution

Our Double Deflection Grille Diffusers offer a world of possibilities to enhance your ventilation and air conditioning systems. Crafted with precision and built to perform, these diffusers are a game-changer in controlling airflow.

Key Features

• Powder-Coated White Finish: A sleek, modern look that complements any space.
• Quality Aluminum Construction: Built with durable aluminum profile 6063 T5 for long-lasting performance.
• Tailored Sizing: Tailor the size to your specific needs, ensuring a perfect fit for your system.
• Removable Core: Easy maintenance and flexibility in airflow control.
• Adjustable Blades: Fine-tune the angle of airflow to meet your requirements. Long blades on top, short blades at the bottom for maximum control.
• Reinforcement for Longer Lengths: Grilles exceeding 600mm in length come with additional center reinforcement, ensuring structural integrity.

Versatile Options

• Double Deflection Wall Grilles: Featuring adjustable blades and the option for an opposed blade damper. Ideal for air supply and exhaust in ventilation and air conditioning systems.
• Single Deflection Wall Grilles: Offering adjustable blades and an optional opposed blade damper. Perfect for air supply and exhaust in HVAC systems.

Premium Material and Finishes

• Material: Made from high-quality aluminum for durability.
• Finish Options: Choose between an anodized natural finish or a classic white RAL color, such as RAL9010 and RAL9016.

Tailored Design

• Designation: Vertical front blades (SG-AV, DG-AV) or horizontal front blades (SG-AH, DG-AH) to suit your specific air pattern needs.
• Mounting Methods: Easily install with invisible clips in a mounting frame for a clean and seamless look.

Enhanced Air Pattern Control

Our Double double-deflection grilles provide maximum flexibility in air distribution. The front set of blades plays a crucial role in shaping the airflow to meet your specific needs.

• Vertical Front Blades: Control air spread and throw distance, offering precision in directing airflow.
• Horizontal Front Blades: Influence the rise and drop of the air pattern, perfect for directing warm air downward or cool air upward along the ceiling.

Optimized Performance

Featuring streamlined ‘teardrop’ shaped blades with 19mm spacing, our grilles maintain a high effective free area average capacity of 75%. This minimizes outlet velocity, reduces pressure drop, and ensures quiet operation, making them the ideal choice for any application.

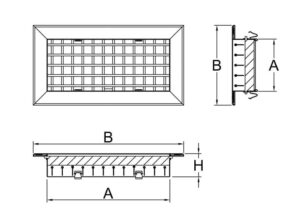

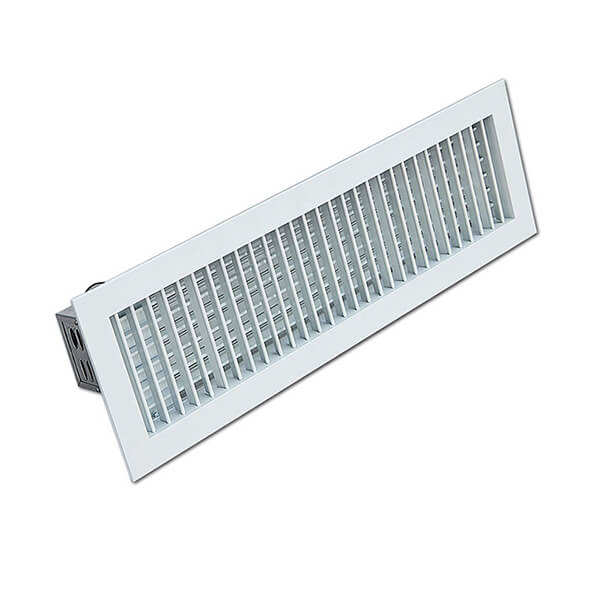

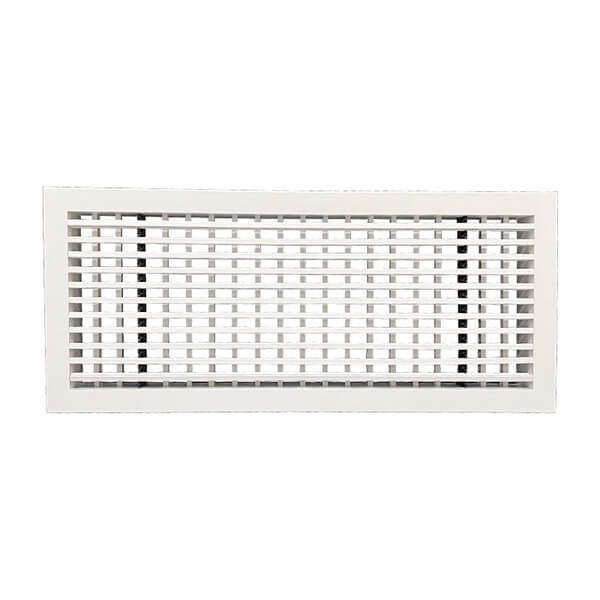

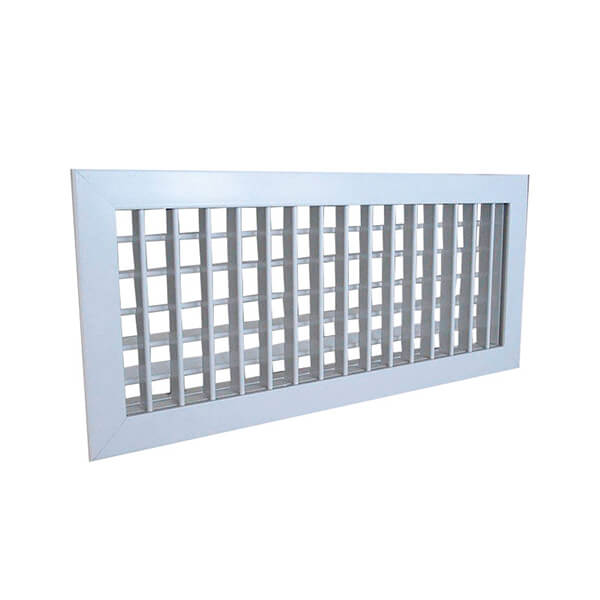

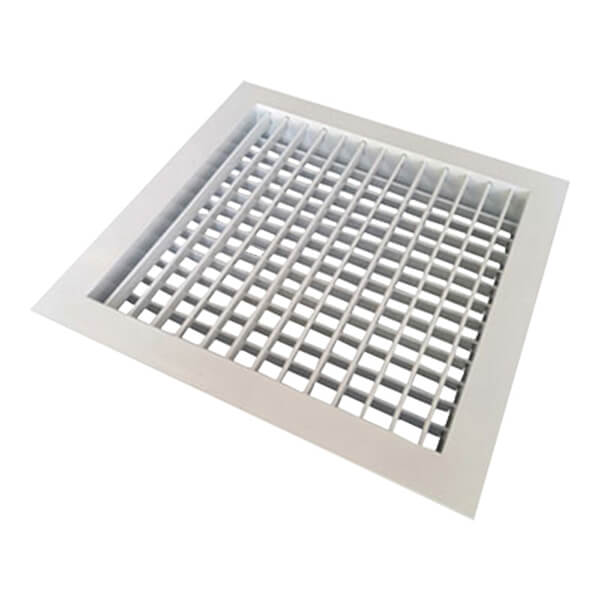

HVAC Double Deflection Grille Diffuser:

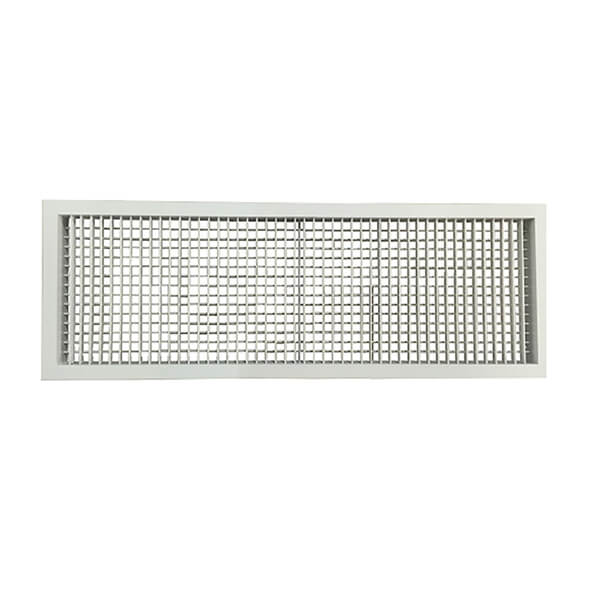

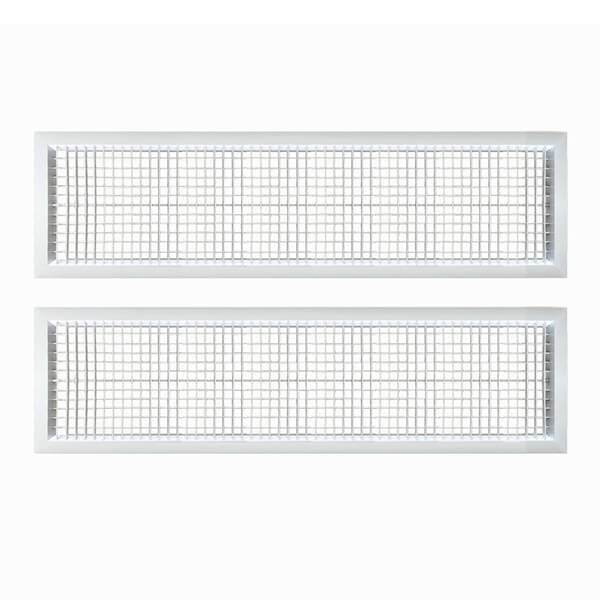

HVAC Double Deflection Grille Removable Core Diffuser:
