AIREVERPEAK(XinSheng) is a China ventilation equipment manufacturer since 1995. Of more than 1000 specification varieties plus other extension systems of 26 categories, most products have the title of “high-tech products.” The production mode of the mass assembly line, specialization, standardization, and intelligence have improved product quality and work efficiency, reduced cost and won OEM cooperation with numerous domestic and foreign well-known brands.
AIREVERPEAK(XinSheng) as an air valve China manufacturer offers professional China-based certified air valves made in different materials, including metal, stainless steel, aluminum and plastic made for different uses.
HVAC air valves are essential components that enhance the functionality, efficiency, and overall performance of heating, ventilation, and air conditioning systems. Their manifold advantages underscore their significance in creating comfortable and sustainable indoor environments.

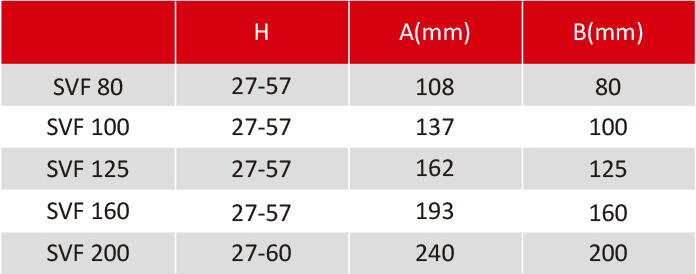

– Application: For air supply and exhaust in ventilation systems.
– Material: polypropylene/impact-resistant ABS plastic.
– Colour: White (Matt white finish).
– Less noise with spring fastening.
– Composition: Polypropylene body with adjustable core and thread.
– Mounting: To be mounted into round duct by thread.
– 3 springs without frame

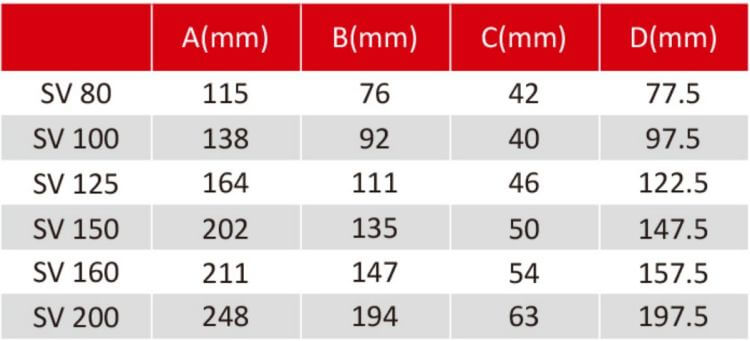

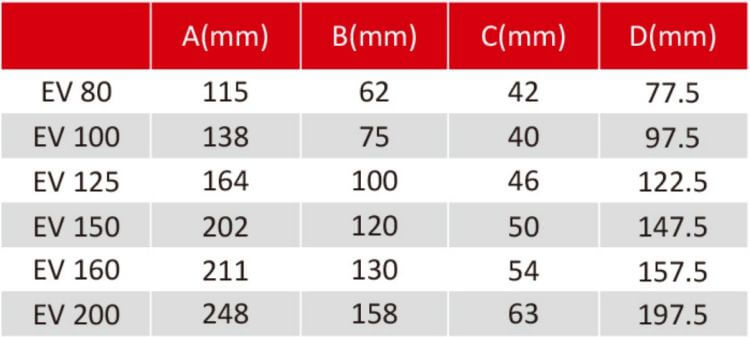

– Steel air exhaust valves with adjustable core
and 50mm mounting frame
– Application: Wall or ceiling mounted valves
EAV for air exhaust inside buildings.
– Material: All steel construction
– Colour : RAL 9016, RAL 9010
– Composition:Pressed steel grill with adjustable
core
– Mounting: Fixing in the mounting frame
– Steel air exhaust valves with adjustable core and 50mm mounting frame.
– EAV: Shooting valves insteel with collar of fixing.
– Material: All steel construction.
– Colour : RAL 9016, RAL 9010
– Composition:Pressed steel grill with adjustable core, supplied with galvanized steel mounting frame.
– Mounting: Fixing in the mounting frame.

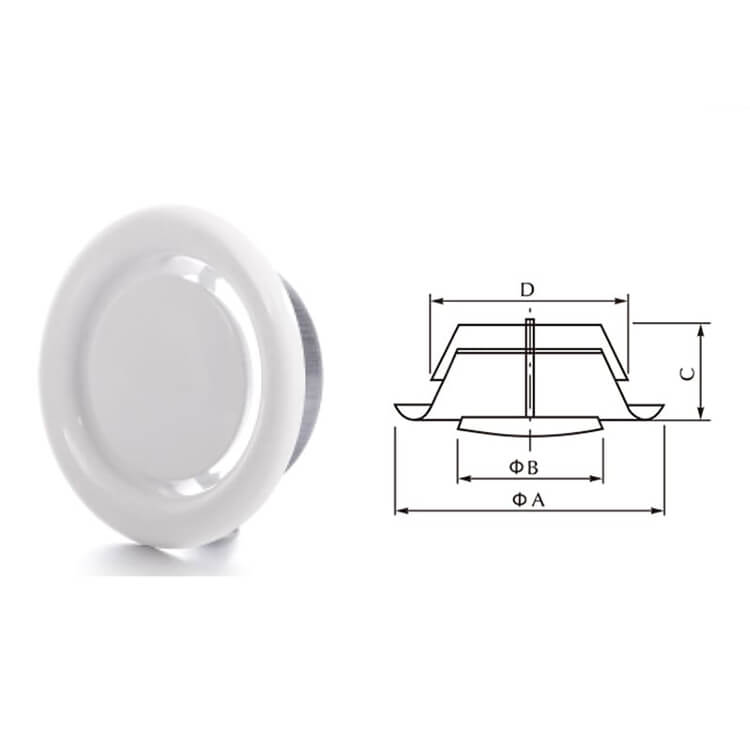

– Air supply and exhaust valves.
– Application: For air supply and exhaust in ventilation systems.
– Material: Stainless steel.
– Colour : brush finish.
– Composition: Body, innercore and mounting frame made of stainless steel 304.
– Mounting: To be mounted with clips inside mounting frame or straight into round ducts without the mountingframe. Central core to be secured with counternut.
– Accessories: Standard mounting frame (included).

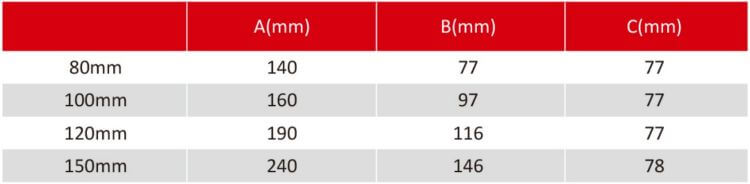

– Manufactured from white polypropylene heat resistant to 100℃.
– A retaining ring can be added for mounting in places with small spaces.
– Application: For air supply and exhaust in ventilation systems.
– Material: Polypropylene.
– Colour: White.
– Composition: Polypropylene body with adjustable core and thread.
– Mounting: To be mounted into a round duct by mounting frame.

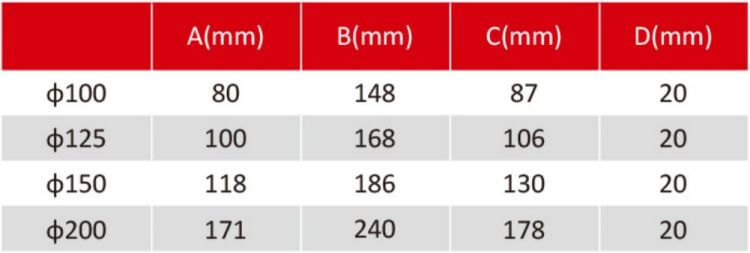

– Manufactured from white polypropylene heat resistant to 100℃.
– A retaining ring can be added for mounting in places with small spaces.
– Application: For air supply and exhaust in ventilation systems.
– Material: Polypropylene.
– Colour: White.
– Composition: Polypropylene body with adjustable core and thread.
– Mounting: To be mounted into a round duct by mounting frame.

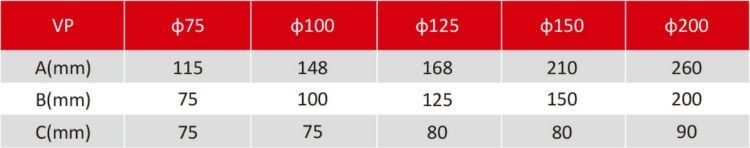

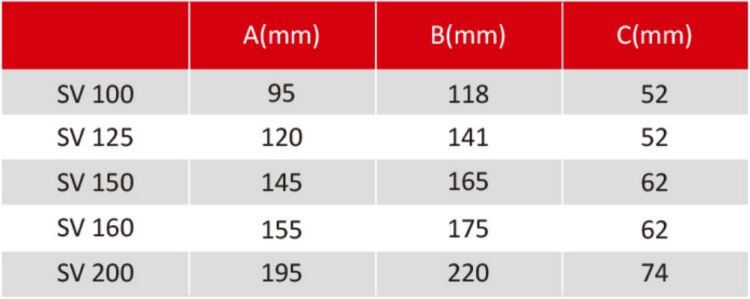

– Steel air supply valves with adjustable core and 50mm mounting frame.
– Application: Wall or ceiling mounted valves SAVC for air supply inside buildings.
– Material: All steel construction.
– Colour: RAL 9016, RAL 9010.
– Composition: Pressed steel grill with adjustable core.
– Mounting: Fixing in the mounting frame, can also be used for direct mounting into the round duct (with or without a mounting frame).

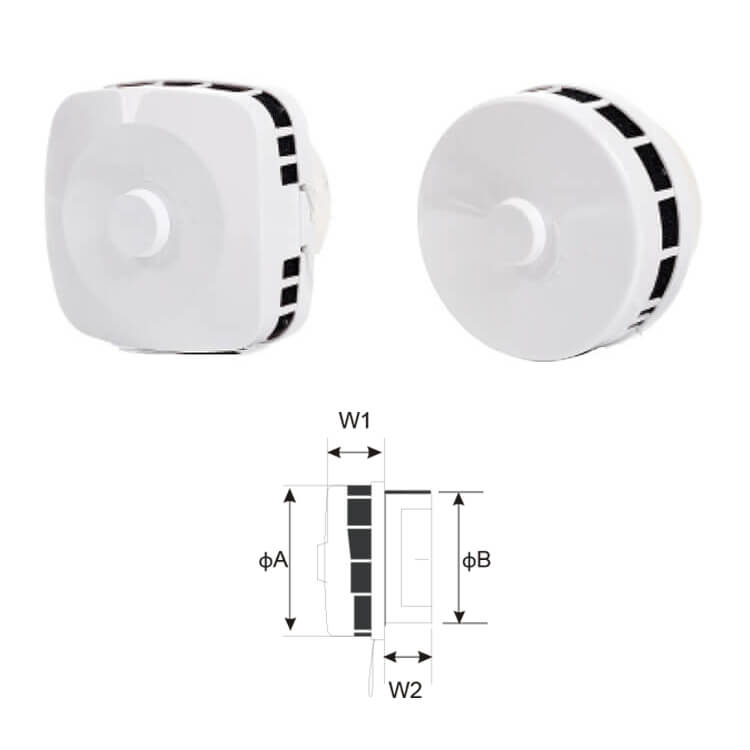

– Wall mounting.
– Thermally insulated disc.
– Efficient sound attenuator(size D125).
– Washable filter.
– Smooth air distribution.
– The plugs in the regulation unit can be removed to prevent the valve from closing completely.

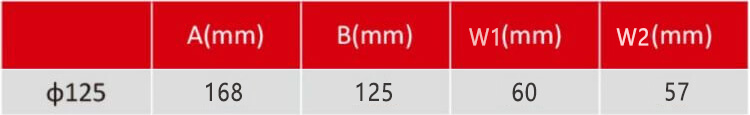

– Available sizes D125.
– Tube length is available upon request.
Our HVAC diffusers meet or exceed industry standards and regulations, assuring customers of their safety and performance.
R&D term constantly innovating, Supports customized service with low MOQ, And new products may come out from time to time.
Design and Construction: Air disk valves typically consist of a circular or square-shaped housing with a perforated or slotted faceplate. The faceplate contains multiple small holes or slots, which serve as outlets for the conditioned air. Behind the faceplate, there is a damper or adjustable mechanism that allows for precise control of the air volume and direction.
Function: The primary function of air disk valves is to distribute conditioned air from the HVAC system into a room or space. They ensure that the air is delivered evenly and at the desired velocity, temperature, and direction. This promotes even cooling or heating, minimizes drafts, and helps maintain consistent indoor comfort.
Types: There are several types of air disk valves available, including:
Applications: Air disk valves are used in a wide range of HVAC applications, including commercial buildings, residential homes, offices, retail spaces, healthcare facilities, and industrial settings. They can be installed in ceilings, walls, or floors, depending on the specific requirements of the space.
Benefits:
Maintenance: Regular maintenance of air disk valves is essential to ensure they function correctly. This may include cleaning the faceplate, inspecting the damper mechanism, and ensuring proper airflow adjustments.
Fixed Pattern Air Disc Valves: These air disc valves have a fixed air pattern, meaning that the direction and spread of conditioned air are predetermined and cannot be adjusted. They are simple and cost-effective and are suitable for applications where a fixed airflow pattern is acceptable.
Adjustable Air Disc Valves: Adjustable air disc valves allow users to customize the direction and volume of the conditioned air by manually adjusting the vanes or louvers within the disc. This versatility makes them suitable for spaces where airflow direction and control need to be fine-tuned.
High-Induction Air Disc Valves: High-induction air disc valves are designed to efficiently mix supply air with room air, creating better air distribution and temperature uniformity. They are particularly useful in commercial and industrial applications where maintaining consistent air quality and comfort is essential.
Directional Air Disc Valves: Directional air disc valves have vanes or louvers that can be adjusted to direct the airflow in specific directions. They are commonly used in spaces with unique ventilation requirements or to avoid drafts in sensitive areas.
Perforated Air Disc Valves: Perforated air disc valves have small holes or perforations on the faceplate to disperse air evenly throughout a room. They are often used in environments where a quiet and uniform airflow is necessary, such as in offices or healthcare facilities.
Radial Air Disc Valves: Radial air disc valves have a circular design and emit conditioned air in a radial pattern, typically creating a 360-degree airflow. They are suitable for spaces where uniform air distribution in all directions is desired.
Square or Rectangular Air Disc Valves: These air disc valves are designed in square or rectangular shapes, making them ideal for use in ceiling grids and HVAC systems that employ square or rectangular ductwork.
Linear Slot Air Disc Valves: Linear slot air disc valves have elongated slots or openings for air discharge. They provide a linear, focused airflow and are often used in applications where air distribution needs to be directed along a specific path.
Surface-Mounted Air Disc Valves: Surface-mounted air disc valves are installed directly on the surface of walls or ceilings. They are a practical solution when there is limited space for recessed or concealed installation.
Aesthetic Air Disc Valves: Some air disc valves are designed with aesthetics in mind, featuring decorative faceplates or finishes that blend seamlessly with interior decor. These valves are often used in upscale or architecturally sensitive environments.
